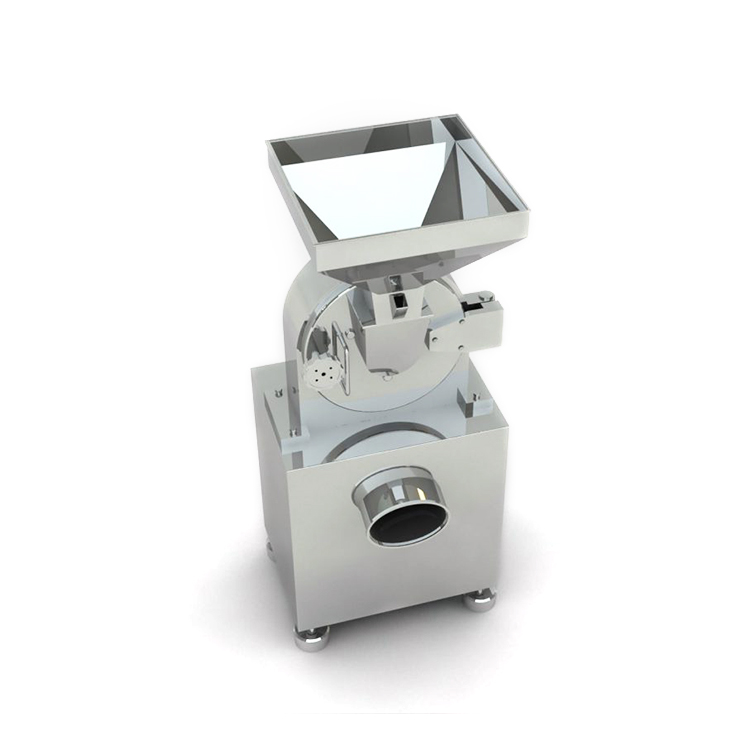

Home » Products » Fine crusher » B Series Universal Crusher
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Main Application:
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Working principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. Designed according to GMP
standard and wholly made of stainless steel, with simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment at present.
Model
Production Capacity
Feeding Size
Crushing Fineness
Spindle Speed
Motor Power
overall dimension
weight
15BIV.V.VI
10-50kg/h
6mm
20-120mesh
6000r/min
2.2kw
550*400*850
mm
100kg
20BIV.V.VI
60-150kg/h
6mm
20-120mesh
4500r/min
4kw
550*600*1250
mm
280kg
30BIV.V.VI
100-400kg/h
6mm
20-120mesh
3800r/min
5.5kw
600*700*1450
mm
350kg
40BIV.V.VI
160-1000kg/h
10mm
20-120mesh
3400r/min
11kw
800*900*1550
mm
550kg
60BIV.V.VI
500-2000kg/h
12mm
20-120mesh
2800r/min
18.5kw
900*900*1880
mm
680kg
80BIV.V.VI
1000-5000kg/h
12mm
20-120mesh
2000r/min
37kw
1100*950*1960
mm
1500kg
100BIV.V.VI
2000-8000kg/h
12mm
20-120mesh
1500r/min
55kw
1350*1000*2100
mm
2500kg
